Structured meshing at its finest

Experience Optimal Simulation Results with Our Expert Mesh Generation.

GET STARTED
Windows logo Mac logo Ubuntu logo Redhat logo

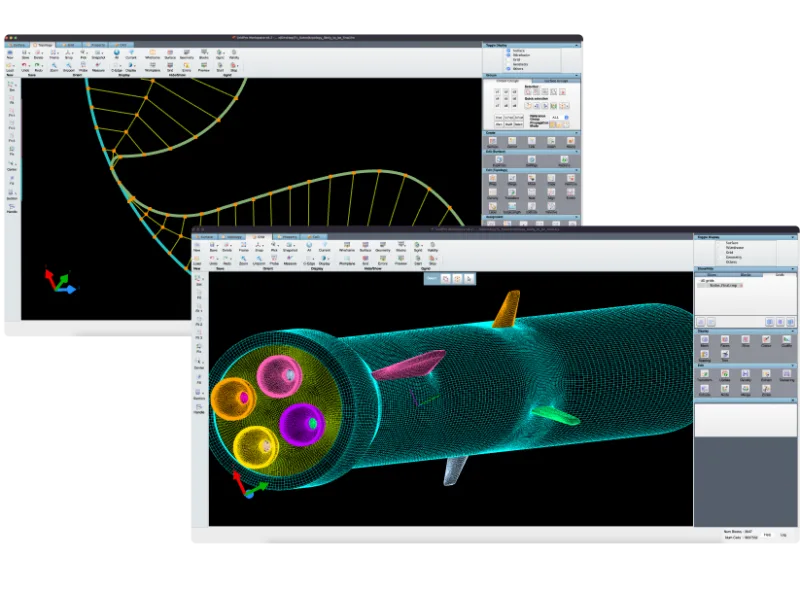

GridPro GUI
GridPro GUI

GridPro

GridPro is a powerful tool for creating high-quality meshes for use in CFD simulations. It is optimized for geometry optimization and provides structured multi-block meshes that deliver consistent, accurate, and reliable results. With GridPro, you can easily create meshes that are of exceptional quality and optimal size, ensuring good solver robustness, solution convergence, high accuracy, and simulation efficiency. This makes it a valuable tool for industries such as aerospace, turbomachines, marine, chemical, energy, medical, propulsion, oil and gas, and more.

Gridpro api desktop Gridpro api mobile
Gridpro api desktop Gridpro api mobile

GridPro API

GridPro API provides a Python-based platform for creating and manipulating meshes and integrating them with other CAD and CFD softwares so that you can automate your meshing process.

Learn Morearrow
GridPro Xpress series desktop GridPro Xpress series mobile
GridPro Xpress series desktop GridPro Xpress series mobile

GridPro Xpress Series

GridPro Xpress Series automates meshing, enhancing accuracy and efficiency while significantly reducing mesh generation time, streamlining CFD workflows for faster and more accurate simulations.

Learn Morearrow

Key Software Capabilities

Scripting icon desk_black Scripting icon mob_black
Scripting icon desk_white Scripting icon mob_white

Scripting in GridPro

One can fire the topology building and meshing commands individually or bundle them together in a file as a batch script or a shell script.
Learn Morearrow
Gridsmoother icon desk_black Grid Smoother icon mob_black
Grid Smoother icon desk_white Grid Smoother icon mob_white

Grid smoother in GridPro

The automatic smoothing algorithm optimizes the grid to be smooth and orthogonal throughout the volumetric region.
Learn Morearrow
Batch mode icon desk_black Batch mode icon_mob_black
Batch mode icon desk_white Batch mode icon_ mobile dark

Batch mode in GridPro

The APIs allow the user to access all the tools in the GUI and more, through command line. Further, the APIs enable the user to script the steps.

Learn Morearrow
Meshes supported normal Meshes supported mobile normal
Meshes supported bbg Meshes supported mobile bbg

Meshes Supported by GridPro

Structured multi-block grids generated in GridPro can be exported in structured as well as unstructured grid formats.

Learn Morearrow
Shape optimization icon_normal Shape optimization icon_mobile
Shape optimization icon_bbg Shape optimization mobile_bbg

Shape Optimization

Dynamic boundary conforming technology in GridPro allows generation of meshes for a wide range of geometric variants differing in shape or position using a single topology.

Learn Morearrow
Higher order mesh normal Higher order mesh_mobile
Higher order mesh_icon_ bbg Higher order mesh_mobile_ bbg

Higher Order Meshes

Additional nodes along the edges, faces, and in the interior of a linear mesh can be introduced to generate higher order meshes.

Learn Morearrow
Flow Physics Capturing_icon_normal Flow Physics Capturing_icon_mobile normal
Flow Physics Capturing_icon_normal bbg Flow Physics Capturing_icon_mobile bbg

Flow Physics Capturing

Flow physics capturing is a crucial aspect of computational fluid dynamics, enabling the accurate representation of major flow phenomena such as wakes and shocks.

Learn Morearrow
Specialized meshing tool icon_desktop Specialized meshing tool icon_mobile
Specialized meshing tool_icon_dsk_white Specialized meshing tool_icon_mobile_white

Specialized Meshing Tools

Numerous specialized meshing tools are available that facilitate semi-automatic block generation for complex geometric features, including multiple holes, pipes, ducts, axisymmetric bodies, circular components, and more.

Learn Morearrow

Features

  • Semi Automatic Blocking
  • Automatic shaping of blocks
  • Automatically shaped periodic surfaces
  • Local enrichment/Adaptation
  • Smart Boundary Layer Clustering
  • Truly 3D grids
  • Multiscale meshing
  • Semi Automatic Blocking
  • Automatic shaping of blocks
  • Automatically shaped periodic surfaces
  • Local enrichment/Adaptation
  • Smart Boundary Layer Clustering
  • Truly 3D grids
  • Multiscale meshing

Semi Automatic Blocking

GridPro’s semi-automatic blocking merges the flexibility of unstructured meshing with the accuracy and efficiency of structured meshing. Unlike traditional structured approaches that require extensive manual blocking, GridPro automates much of the process while retaining user control. ...
Read More arrow
Fluid image Fluid image mo

Automatic shaping of blocks

Unlike rigid meshing approaches, which rely on users to shape the blocks, GridPro’s fluidic blocks dynamically adapt to geometry surfaces, ensuring smooth, orthogonal, and high-quality grids. The proprietary Dynamic Boundary Conforming (DBC) technology automatically optimizes grid structure, with manual intervention to create a mesh of high quality....
Read More arrow

Automatically shaped periodic surfaces

For periodic geometries like turbine blades or impellers, there is no need for putting periodic surfaces. The user provides the blade, wireframe and periodicity and GridPro automatically shapes the periodic surface. This gives the flexibility to easily accommodate blade variations and ...
Read More arrow
Local enrichment_image

Local enrichment/Adaptation

Compact Enrichment is a powerful tool that offers a unique capability in refining specific regions near or away from a surface without affecting the farfield. Serving as a post-processing step for a completed working topology, it enables further enhancement without disturbing the overall flow characteristics....
Read More arrow
Smart Boundary Layer Clustering_image

Smart Boundary Layer Clustering

The smart boundary layer clustering algorithm efficiently produces a well-defined grid by utilizing the first cell spacing input. It dynamically adjusts various parameters such as the number of layers, growth ratio, smoothness, and propagation to generate a grid that seamlessly resolves the given data....
Read More arrow
Truly 3d_image

Truly 3D grids

GridPro's grids are characterized by their remarkable 3D nature, setting them apart from conventional methods that merely stack 2D profiles to form contoured blades. This distinction is achieved through GridPro's advanced tools that facilitate the creation of genuine 3D grids while preserving orthogonality in all directions....
Read More arrow
Multiscale meshing_image

Multiscale meshing

GridPro offers automated techniques for meshing geometries of varying scales, ranging from kilometers to millimeters, which is crucial in multi-scale problems. The challenge lies in creating grids that smoothly transition from the smallest to the largest cells in the flow field....
Read More arrow
