Higher Order Meshes
High order grids play a crucial role in achieving accurate CFD computations. Unlike regular linear grids, these grids possess additional nodes that enhance the spatial and temporal accuracy of numerical simulations.
To transform a linear mesh into a high order grid suitable for advanced flow solvers, mid nodes are introduced along edges, faces, and within the interior. The addition of these nodes increases the accuracy of the grid: with one node, the cell becomes quadratic; with two, it becomes cubic; and with three, it becomes quartic.

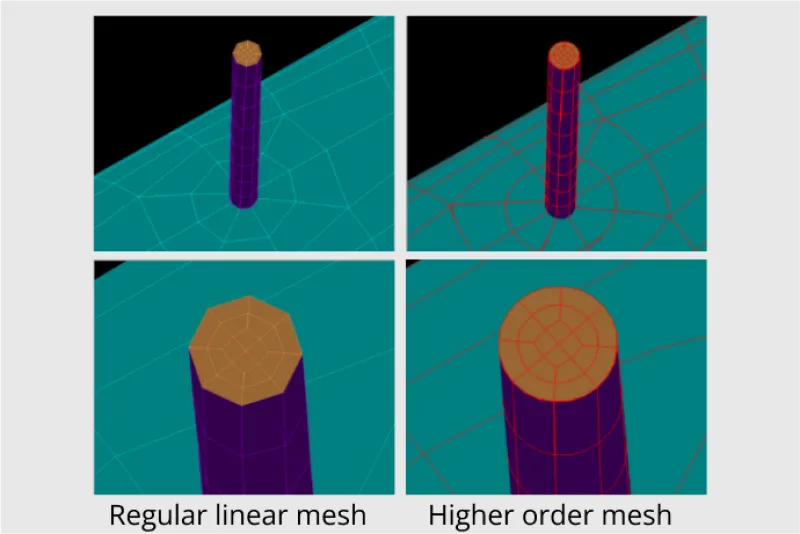

Curved meshes, as higher-order grids are sometimes called, derive their name from the fact that adding nodes to linear mesh edges causes the edges to curve. This property proves advantageous in representing complex geometries accurately, as the curved edges conform to the shape, reducing the number of elements required. Consequently, curved meshes are particularly well-suited for computations involving the capture of intricate flow features and curved parts such as pipes, and holes.
Despite their benefits, generating higher-order meshes poses challenges, especially near boundaries and within boundary layer padding. Ensuring the precise placement of new grid points on geometric surfaces presents a significant challenge. Furthermore, preventing the occurrence of criss-crossing high aspect ratio curved cells on highly curved surfaces adds further complexity. However, GridPro addresses these issues with its automatic smoothing algorithm, ensuring that the requirements for accurate higher-order grids are met consistently, even for large and complex configurations.
GridPro offers the capability to export higher-order grids in two mesh formats: CGNS and HOMusic. These formats allow for seamless integration with various CFD solvers, enabling researchers and engineers to harness the benefits of higher-order grids in their simulations.
If you're interested in delving deeper into the world of higher-order grids and their applications, be sure to check out the GridPro blog article titled: Higher Order - A Future CFD Technology
It provides further insights and valuable information on this exciting advancement in CFD technology.
