GridPro Xpress Volute

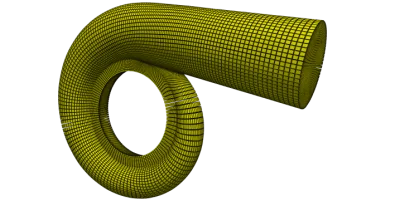

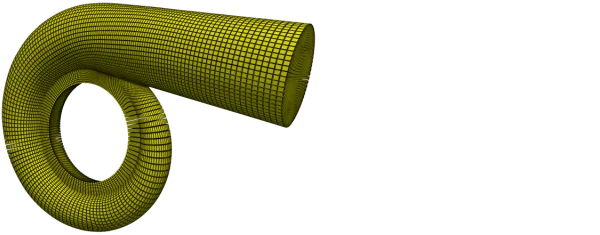

GridPro Xpress Volute meshes deliver superior accuracy in simulations, capturing the intricate flow fields within volutes with high fidelity. This leads to more reliable predictions of performance and efficiency, allowing engineers to design better-performing systems with confidence.

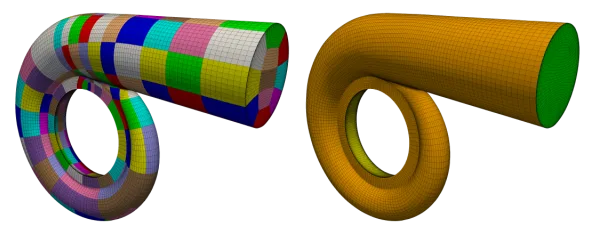

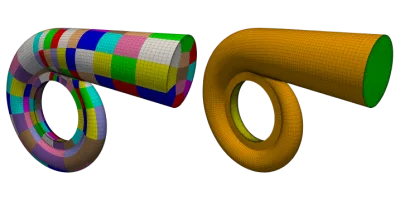

Regardless of geometric variations, the fundamental blocking structure in GridPro remains constant. Once established, GridPro Xpress Volute automated blocking structure is versatile enough to accommodate a wide range of topological variations, such as changes in the inlet, scroll, tongue, and outlet cross-sections, including shifts from circular to elliptical shapes and more. This topological foundation not on...

GridPro Xpress Volute Automation significantly reduces the risk of human errors inherent in manual meshing. GridPro’s automated processes enables you to reproduce your meshes with consistent quality and structure, minimizing variability and inaccuracies that can arise from manual methods. This reliable approach helps maintain the integrity of your simulations and ensures precise results.

GridPro’s automation significantly reduces the meshing time for each design iteration, allowing you to quickly generate high-quality structured meshes for multiple volute geometries. This automation is especially valuable when testing numerous design parameters. With GridPro, you can streamline your parametric CFD studies from mesh generation to simulation, speeding up the overall optimization process and helping you ...

GridPro Xpress Volute Automation offers seamless integration with geometry creation tools like Catia and design optimization platforms such as Caeses, allowing for automated exploration and refinement of the design space to enhance volute performance. It also integrates effortlessly into broader simulation workflows with software like TCFD, Fluent and CFX, streamlining the entire process from geometry generation to si...

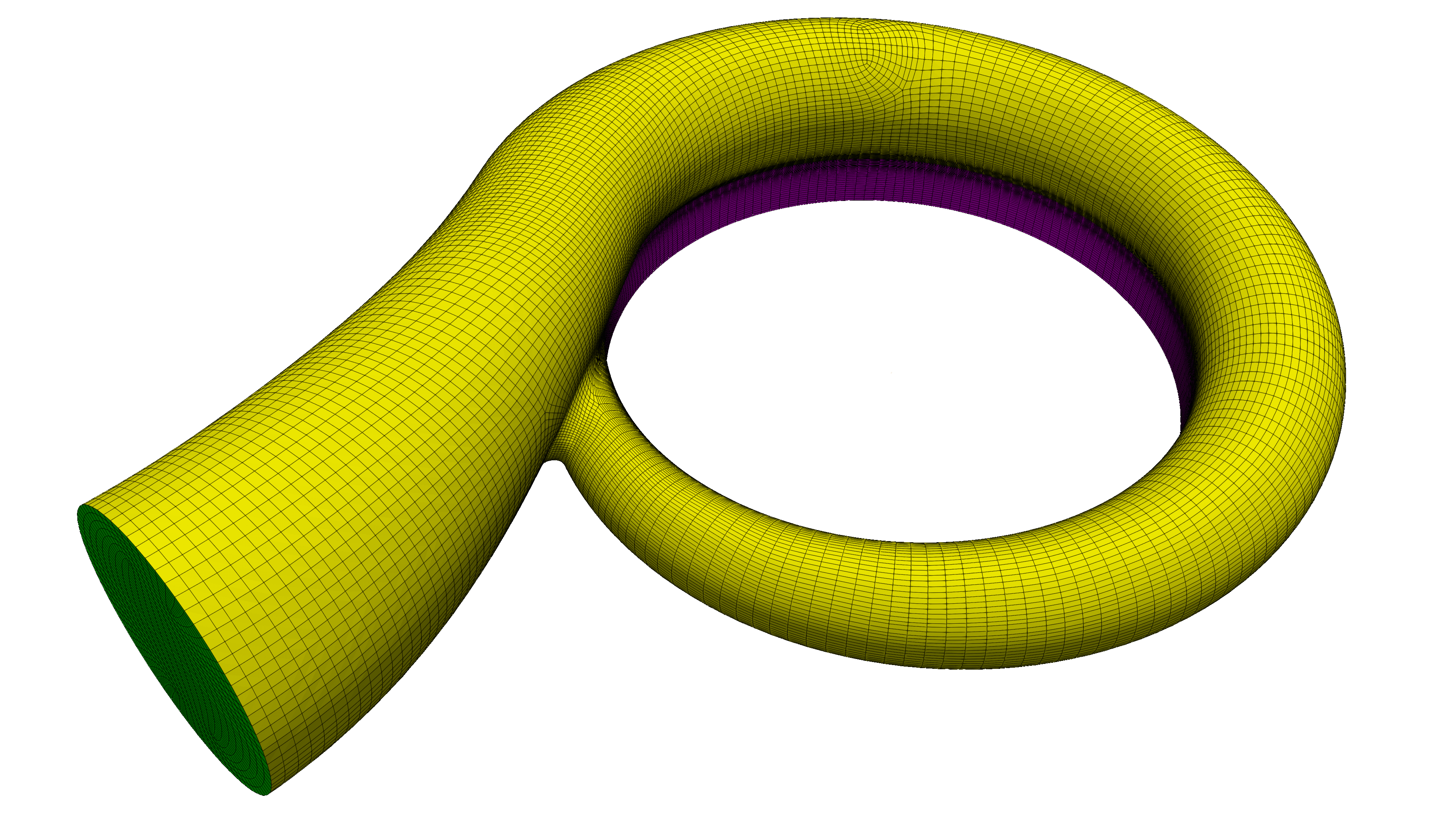

Volute Xpress, excels in capturing the intricate flow field within volutes by generating high-quality, structured grids that conform precisely to the complex volute geometry. The tool's ability to resolve swirl-dominated, unsteady flow patterns, including circumferential distortions caused by asymmetric volute designs, ensures accurate prediction of flow parameters like pressure, velocity, and flow angles.By cre...

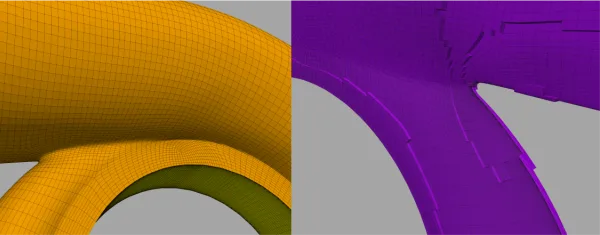

Volute Xpress, accurately captures the geometry and the intricate flow dynamics around the tongue of a volute, a region known for complex phenomena like flow separation, recirculation, and strong swirl due to the interaction between the impeller and casing. Unlike other grid generators, Volute Xpress effectively meshes even challenging geometries, such as cut-back tongues, providing high-resolution grids that reveal u...
