GridPro Xpress Fuel Rod

Automatically generate meshes for different nuclear fuel rod bundles with wrapped wires.

Why GridPro Xpress Fuel Rods?

GridPro's automation script delivers top-quality meshes with minimal user input. The Xpress Fuel Rods solution stands out for being Automatic, Flexible, Scalable, User-Controllable, and Versatile. It enables rapid mesh generation—comparable in speed to an unstructured mesher—while maintaining the advantages of a structured mesh, including high quality, Multi-Grid Scalability, and user control over mesh size and refinement. For self-replicable configurations, such as nuclear fuel rod assemblies, Xpress Fuel Rods can nearly achieve these optimal standards.

Revolutionize Nuclear Fuel Rod meshing with GridPro Xpress Fuel Rod

Download Brochure

Automation
Scalability
Local grid-refinement
Optimized cell count
Mesh Quality
Versatility

Automation
Scalability
Local grid-refinement
Optimized cell count
Mesh Quality
Versatility

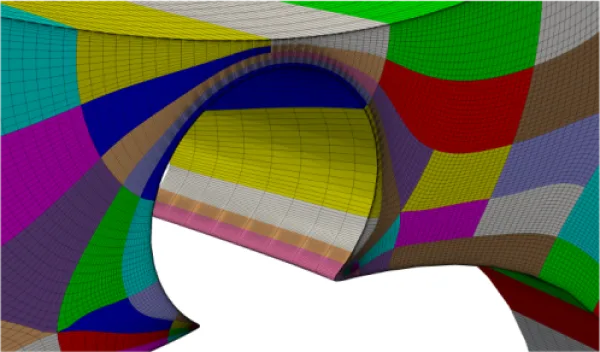

Automation

Template-based meshing enables single-rod wire block template to build entire fuel rod assemblies....

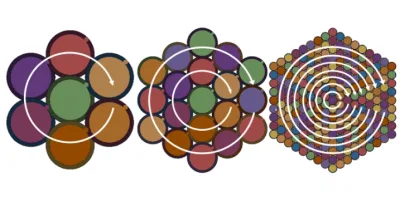

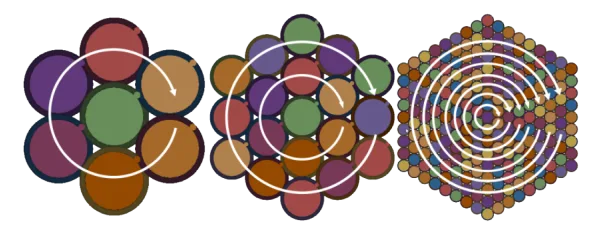

Scalability

Enables scalability for varying rod counts and different mesh resolutions....

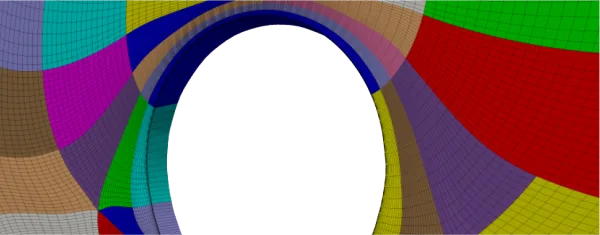

Local grid-refinement

Enrichment tool allows localized grid refinement at wire-rod contacts....

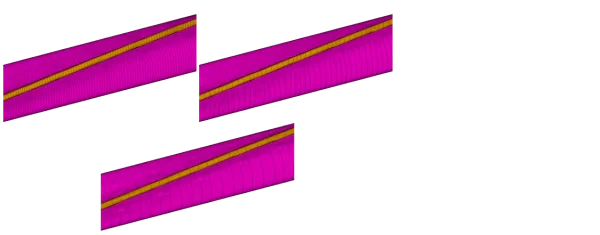

Optimized cell count

Hexahedral grids with directional refinement abilities enables to reduce the cell count axially....

Mesh Quality

Automatic quality checks, block smoothing algorithm ensure optimal cell quality even in narrow gaps and high acute regions....

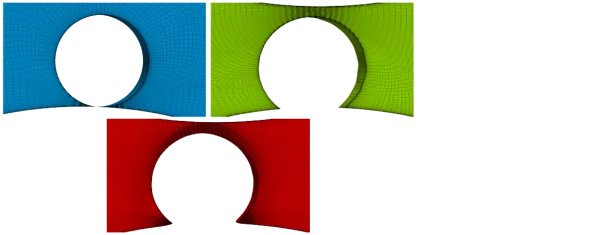

Versatility

Facilitate easy accommodation of different variants of wire-rod junctions - point wire-rod contact, sharp angle wire-rod intersection, filleted wire-rod intersection, square cross-section wires, wires represented by thin sheets, etc....
