GridPro Xpress Blade

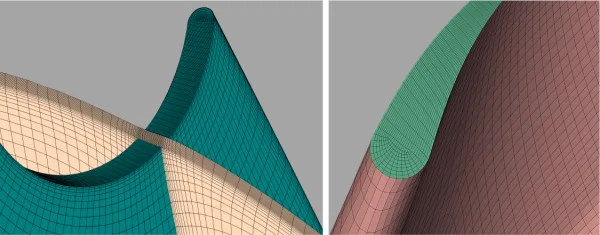

GridPro Xpress Blade excels in generating 1-1 connected meshes at blade tips, a crucial feature for capturing the intricate flow characteristics in these regions. By automatically generating a seamless, structured mesh, the tool ensures that the mesh elements at the tip align perfectly with those in the rest of the blade, maintaining grid continuity and improving simulation accuracy. This 1-1 connection is v...

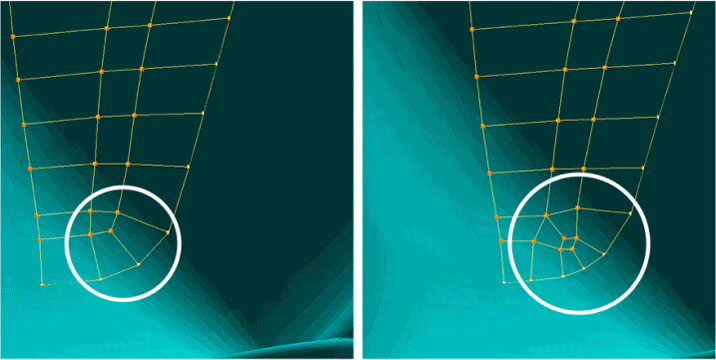

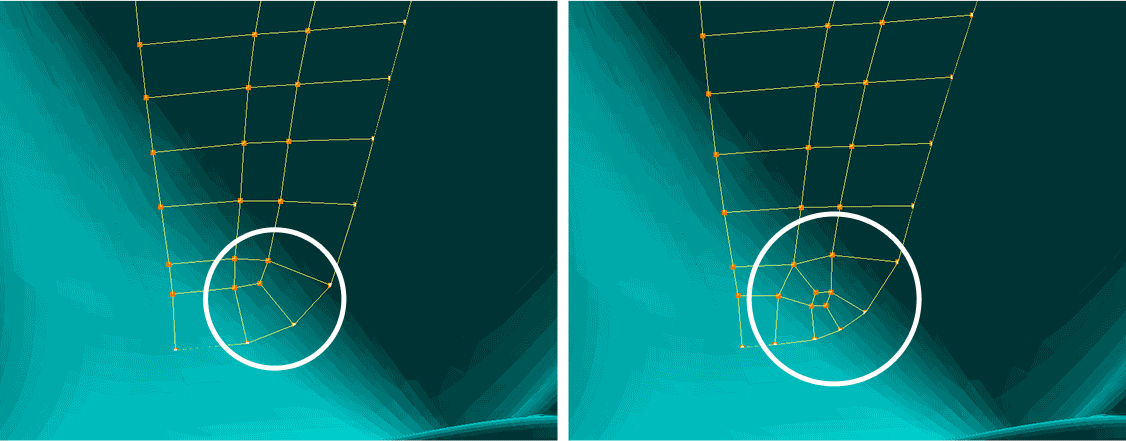

GridPro Xpress Blade offers powerful editable blocking capabilities, allowing users to fine-tune the mesh for complex blade geometries. This structured multi-block mesh automation tool enables flexibility in adjusting and refining the block structure to meet specific design and simulation needs. ...

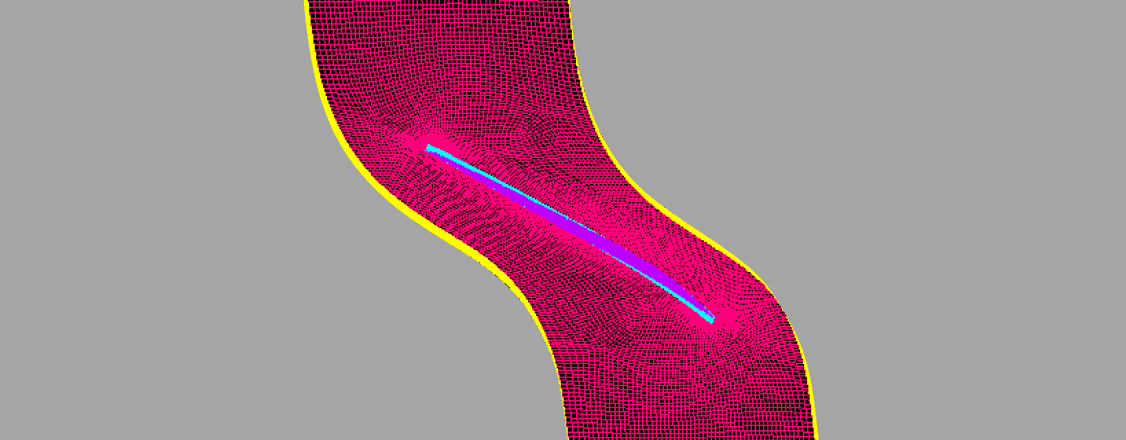

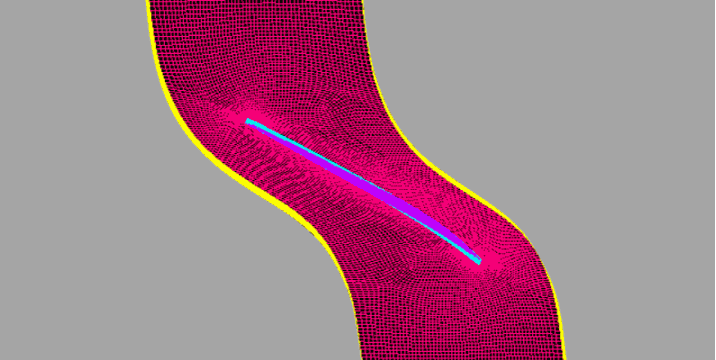

GridPro offers flexible periodic surface handling, automatically calculating periodic boundaries while adapting to geometric features, blocking structure, and mesh density. This ensures precise alignment, even for complex turbine and compressor configurations....

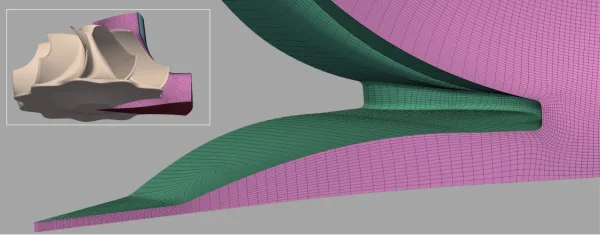

Meshing secondary flow paths in compressors and turbines is essential for capturing tip leakage, passage vortices, and endwall flows, which impact efficiency, losses, and cooling performance. Poor meshing leads to inaccurate loss predictions and turbulence modeling....

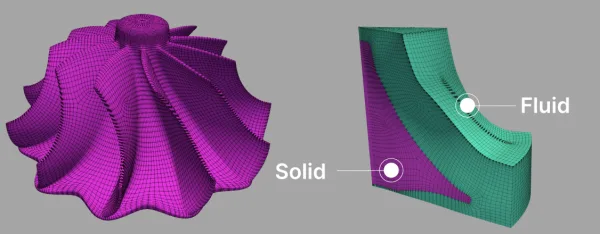

GridPro can create 1-to-1 connected solid and fluid meshes for turbomachinery blades which improves accuracy, stability, and efficiency in CFD and FEA simulations. It eliminates interpolation errors at the solid-fluid interface, enhancing conjugate heat transfer (CHT) and fluid-structure interaction (FSI) studies....
